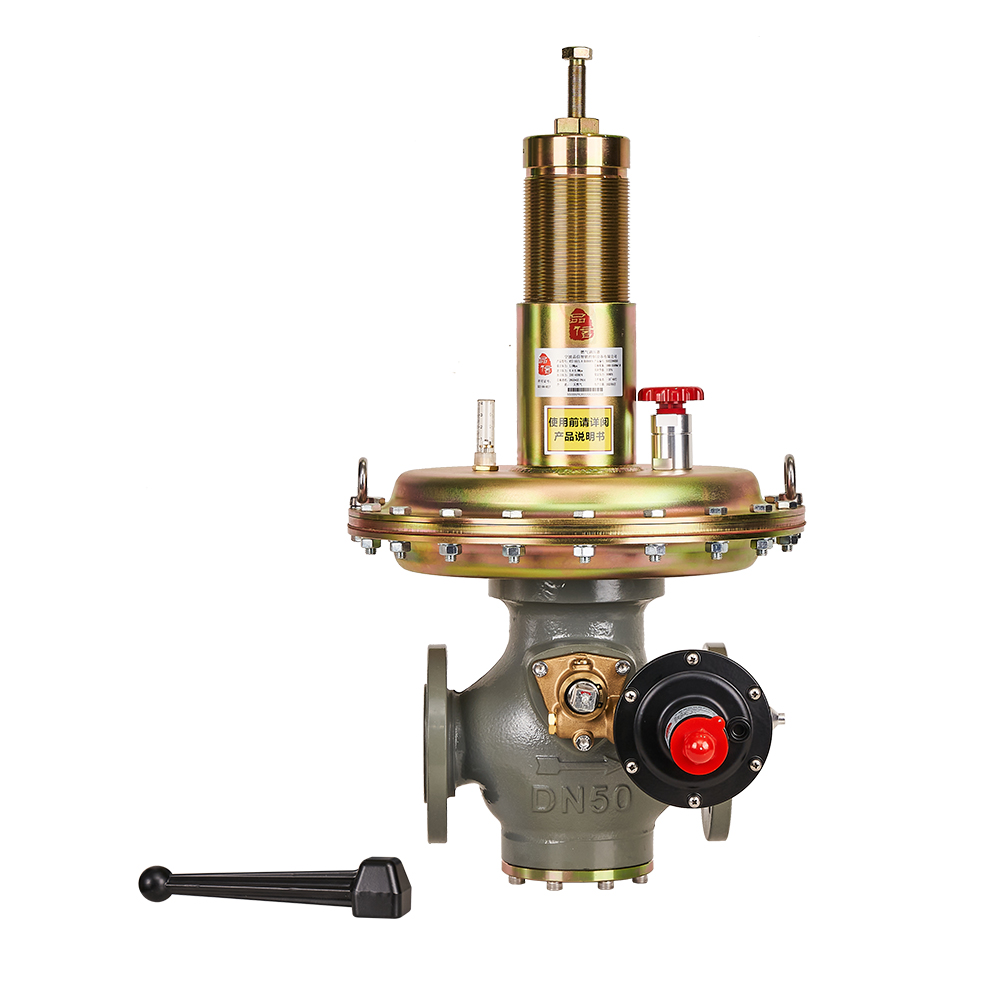

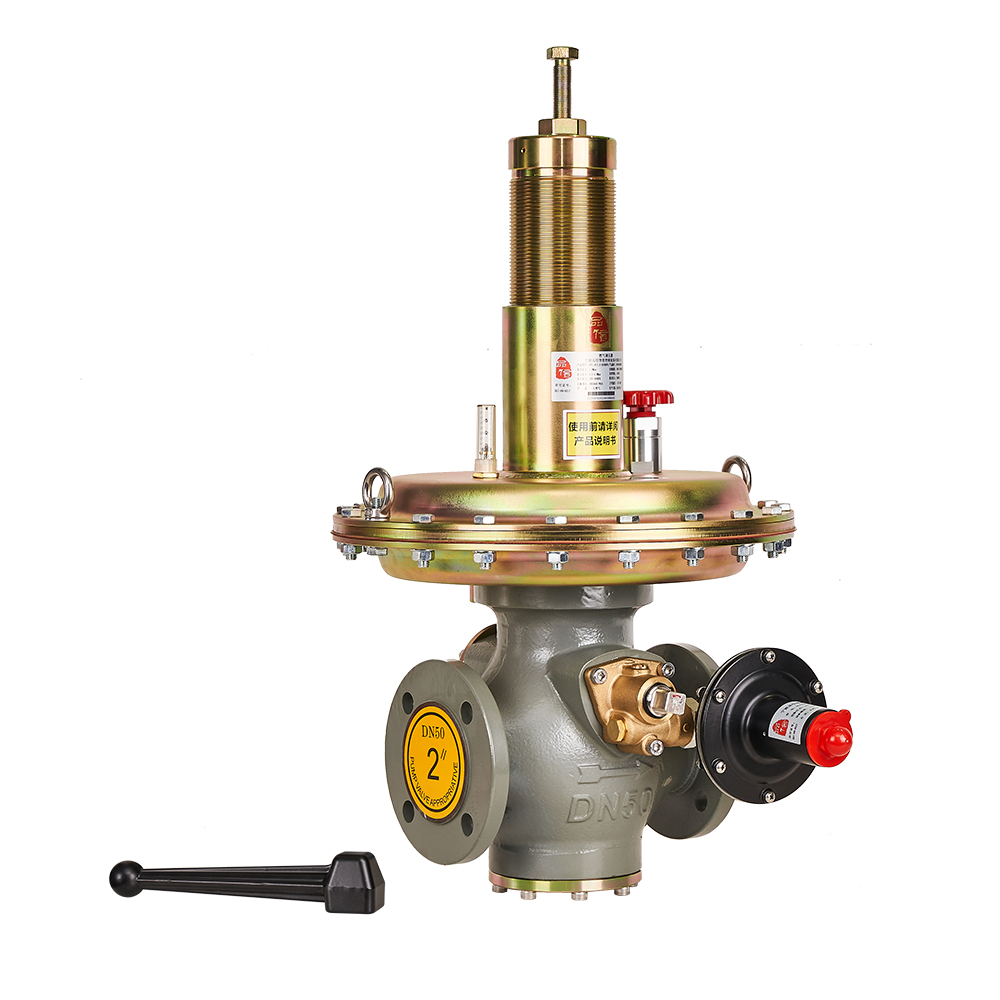

B50 SERIES DIRECT ACTING GAS PRESSURE REGULATOR
Technical Data
Maximum inlet pressure P1max : 20bar
Inlet pressure range SP1 : 0.5~19bar
Outlet pressure range 5P2: 0.015~4bar
Stabilization accuracy grade / AC: +5%~±15%
Closing pressure level / SG: < 20%
Cutting accuracy / AQ:<+5%
Response time / Ta: < 1sec
Maximum flow (NG) / Please contact with us for the flow rate chart
Working temperature: - 20 °C ~ + 60 °C
Weight / Low pressure type: 55kg
/ High pressure type: 59 kg
Connection size: DN50 PN16
