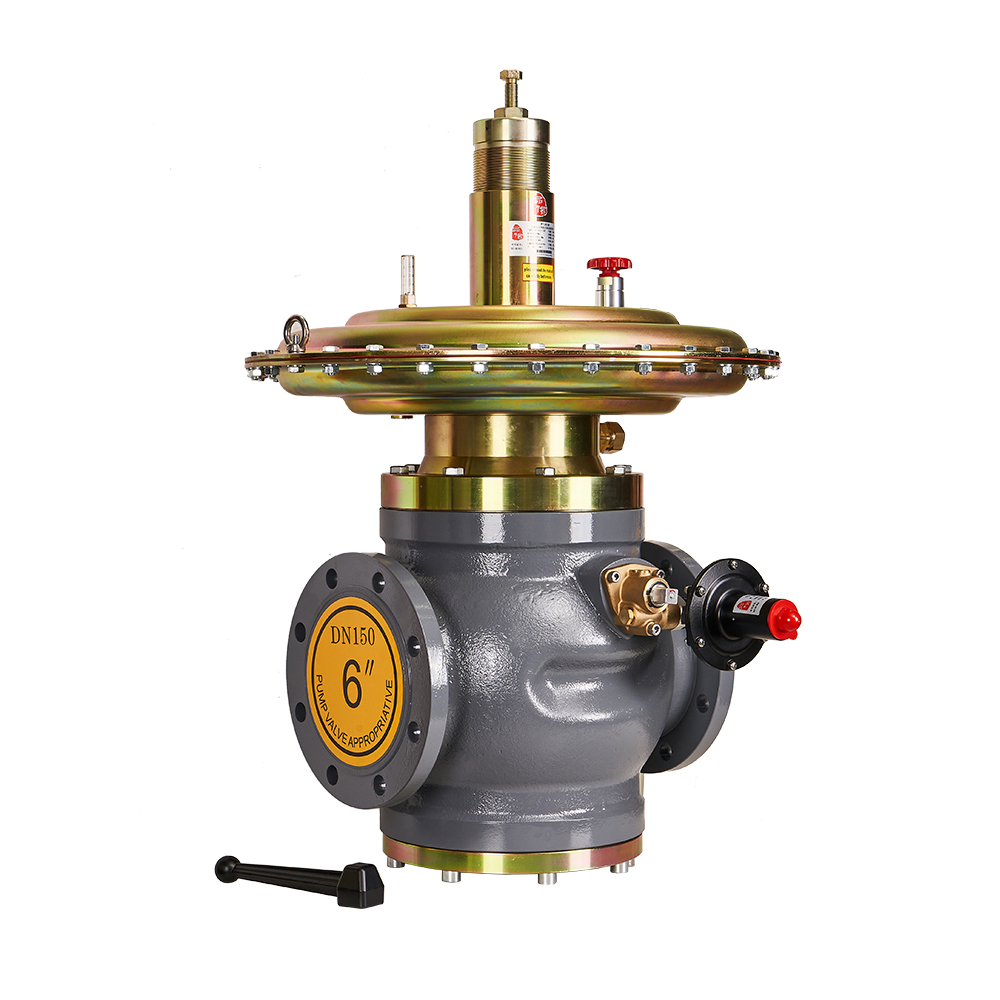

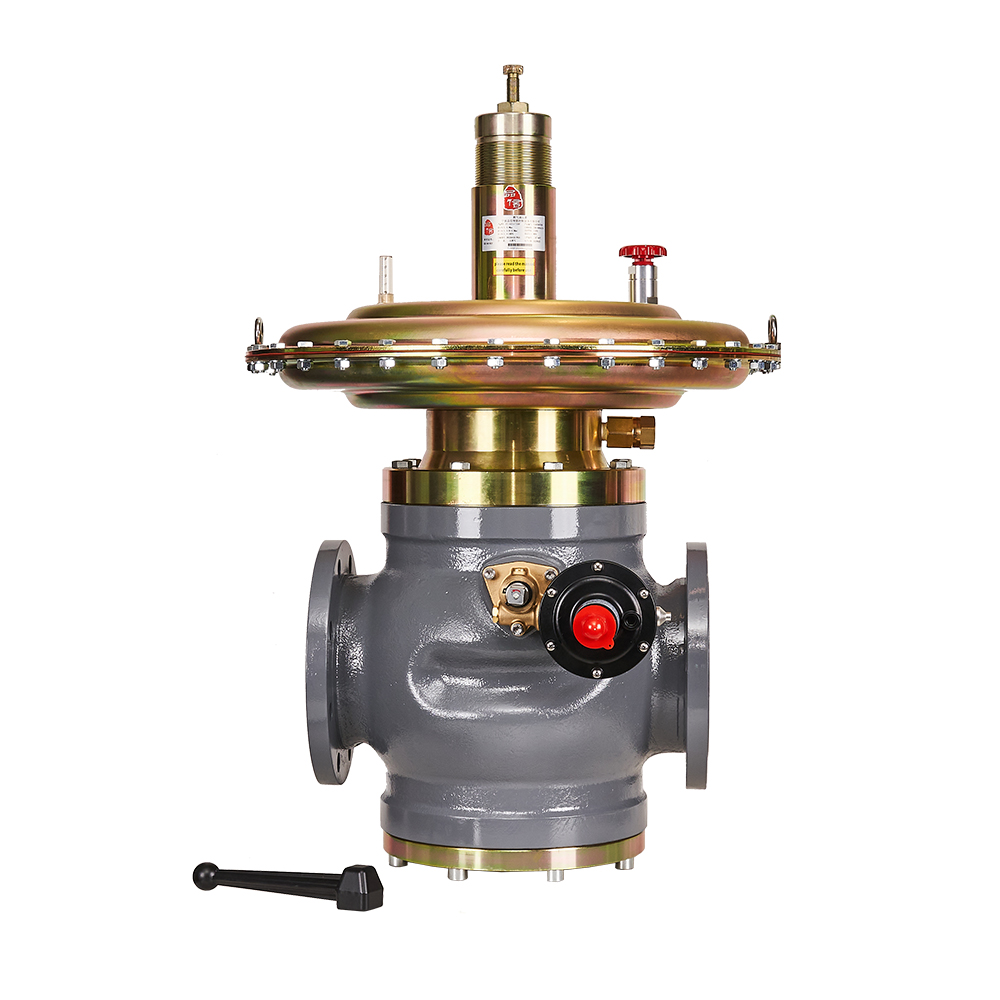

T150 SERIES GAS PRESSURE REGULATOR

Short Description:

T150 series regulator is a diaphragm and spring controlled direct acting regulator. Widely used in medium-sized commercial facilities and regional regulator. Suit for high medium and low-pressure transmission system. Built with ultra-low-pressure safety protection devices. The regulator has characteristics of simple structure operation easy maintenance online, etc.

Send email to us Preview Sample

Product Detail

Product Tags

T150 SERIES GAS PRESSURE REGULATOR

Technical Data

Maximum inlet pressure / P1max: 20bat
Inlet pressure range / & P1: 0.5 ~ 19bar
Outlet pressure range / & P2: 0.02 ~ 4bar
Voltage stabilization accuracy grade / AC: <±10%
Closing pressure level / SG: <20%
Cutting accuracy / AQ: +5%~±15%
Response time / Ta: < 1sec
Maximum flow (NG) / Qmax: see flow comparison table
Connection size: DN150xDN150 PN16
Working temperature: - 20 °C ~ + 60 °C
Weight: Standard Type: 195kg
AP / APA type 210kg
